CLOPAY® COMMERCIAL DOORS
ARCHITECTURAL SERIES – ALUMINUM
Bring natural light, visibility, and contemporary architectural style to commercial spaces with Clopay® Architectural Series – Aluminum doors. Commercial-grade aluminum construction and full-view configurations create a clean, modern appearance for a wide range of commercial and architectural applications.
FULL-VIEW ALUMINUM DESIGN
NATURAL LIGHT & VISIBILITY
COMMERCIAL-GRADE CONSTRUCTION
MODELS & SPECIFICATIONS
CHOOSE THE RIGHT ARCHITECTURAL SERIES – ALUMINUM MODEL
Clopay® Architectural Series – Aluminum doors are available in four commercial configurations. Models 904 and 904U feature equal-width and equal-spacing construction, while Models 906 and 906U use a minimal-stile design for a cleaner full-view appearance.
904
STANDARD FULL-VIEW MODEL
THICKNESS
2-1/8"
SPACING
Equal width & spacing
INSULATION
Non-insulated
MAXIMUM STANDARD WIDTH
24'2"
MAXIMUM STANDARD HEIGHT
20'0"
904U
INTELLICORE® INSULATED MODEL
THICKNESS
2-1/8"
SPACING
Equal width & spacing
INSULATION
Intellicore® polyurethane insulated rails and stiles
R-VALUE
3.8 with insulated low-E argon-filled glass
U-FACTOR
0.73
MAXIMUM STANDARD WIDTH
20'2"
MAXIMUM STANDARD HEIGHT
20'0"
906
MINIMAL-STILE FULL-VIEW MODEL
THICKNESS
2-1/8"
SPACING
Minimal stiles
INSULATION
Non-insulated
MAXIMUM STANDARD WIDTH
22'2"
MAXIMUM STANDARD HEIGHT
16'0"
906U
INSULATED MINIMAL-STILE MODEL
THICKNESS
2-1/8"
SPACING
Minimal stiles
INSULATION
Intellicore® polyurethane insulated rails and stiles
MAXIMUM STANDARD WIDTH
20'2"
MAXIMUM STANDARD HEIGHT
16'0"
Maximum width and height values shown are standard sizing. Model 904U R-value of 3.8 applies with insulated low-E argon-filled glass. Available sizes and configurations may vary by application and selected options. Contact South Gate Commercial Doors & Accessories for project-specific product selection and requirements.
PRODUCT OPTIONS
CUSTOMIZE YOUR ARCHITECTURAL SERIES – ALUMINUM DOOR
Customize your Clopay® Architectural Series – Aluminum door with glazing and panel materials designed to provide different levels of natural light, visibility, privacy, and architectural appearance.
904 / 904U GLAZING MATERIALS
Models 904 and 904U offer a wide selection of full-view glazing and panel materials for commercial and architectural applications.

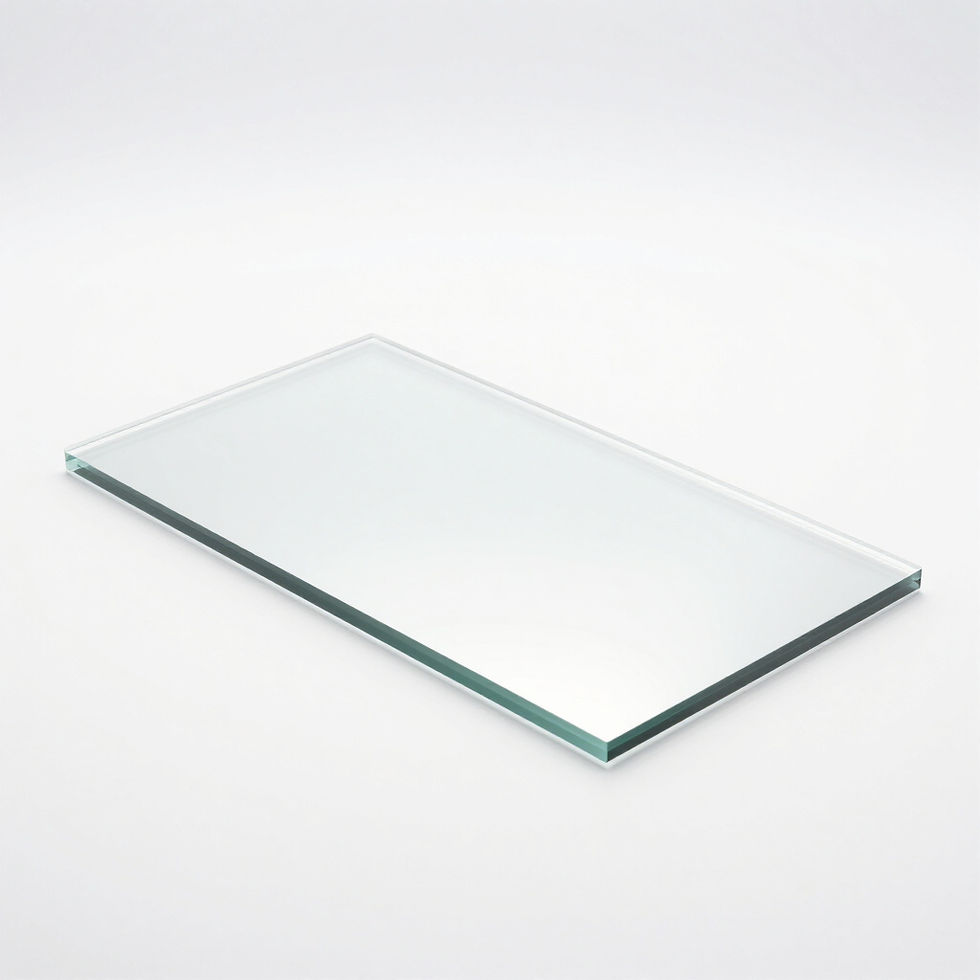

CLEAR GLASS
GRAY TINTED GLASS
BRONZE TINTED GLASS
MIDNIGHT GRAY GLASS
MIRRORED GLASS
OBSCURE GLASS
WHITE LAMINATE GLASS

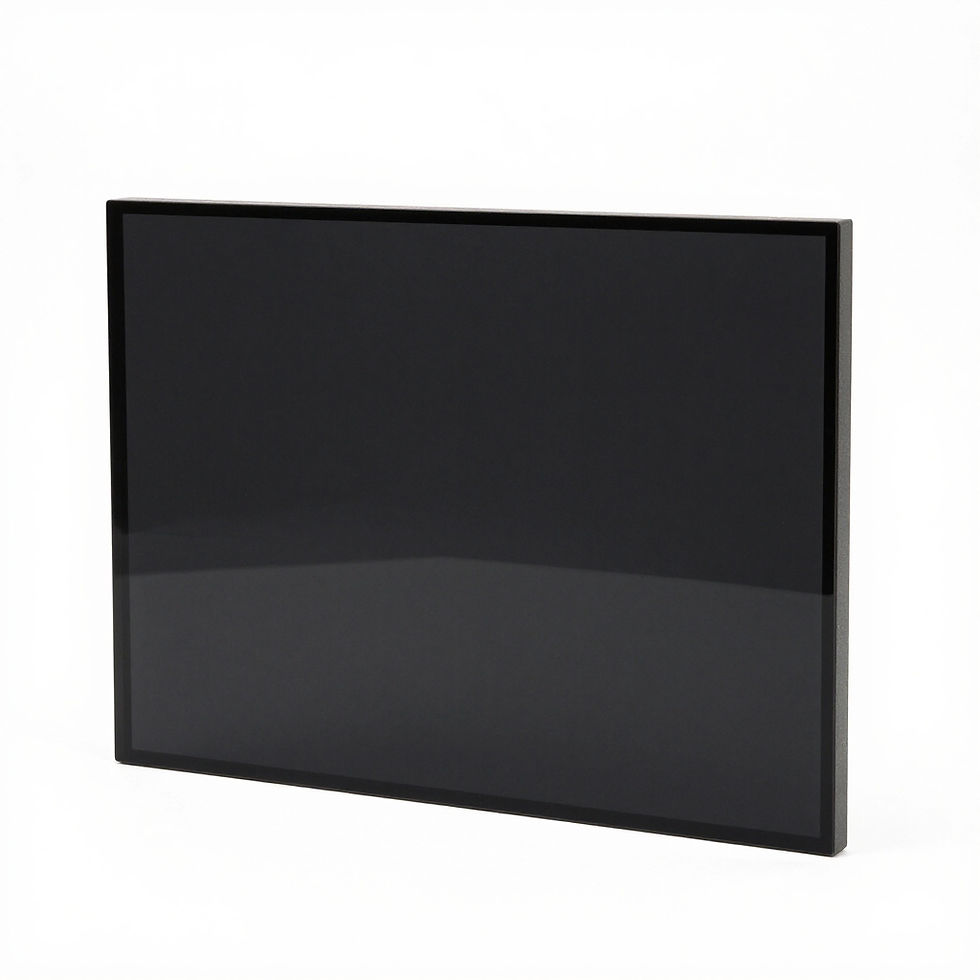

BLACK LAMINATE GLASS
FROSTED GLASS OR ACRYLIC
CLEAR ACRYLIC
GRAY ACRYLIC
WHITE ACRYLIC
CLEAR POLYGAL
BRONZE POLYGAL
ALUMINUM PANEL (COLOR MATCHED)
FRAME OPTIONS
ALUMINUM FRAME FINISHES
Choose an aluminum frame finish to coordinate the Architectural Series – Aluminum door with the architectural style and exterior design of the commercial facility.
Additional custom powder coat, Color Blast®, and anodized finish options may be available. Finish availability may vary by model and project requirements. Contact South Gate Commercial Doors & Accessories for current options and project-specific product selection.
CLEAR ALUMINUM (ANODIZED)
STANDARD WHITE
BRONZE (PAINTED)
CHOCOLATE (PAINTED)
BRONZE ANODIZED
DARK BRONZE ANODIZED
PREMIUM PANEL OPTION
C-POWER™ ENABLED CLICK-TO-CONCEAL™ PANELS
Add adaptable privacy to Architectural Series – Aluminum doors with C-Power™ enabled Click-to-Conceal™ Panels. This switchable glazing technology allows the panels to transition between clear and opaque states while maintaining the clean, full-view architectural appearance of the door.
GRAY CLEAR / GRAY OPAQUE
CLEAR / WHITE OPAQUE
PRIVACY ON DEMAND
C-Power™ technology provides flexible privacy for commercial spaces while preserving natural light and the modern architectural character of full-view aluminum doors.
C-Power™ panel availability varies by model, glazing configuration, and project requirements. Contact South Gate Commercial Doors & Accessories for current availability and product selection assistance.
BUILT FOR PERFORMANCE
COMMERCIAL-GRADE CONSTRUCTION & PERFORMANCE
Architectural Series – Aluminum doors combine durable commercial-grade aluminum construction with configurable hardware, track, and performance options for demanding commercial applications.
DURABLE ALUMINUM CONSTRUCTION
Built with 2-1/8" commercial-grade aluminum sections designed to provide strength while maintaining the clean appearance of a full-view architectural door.
INSULATED MODEL OPTIONS
Models 904U and 906U feature Intellicore® polyurethane-insulated rails and stiles for applications where enhanced thermal performance is desired.
COMMERCIAL TRACK CONFIGURATIONS
Available track configurations support a variety of commercial installations, including standard lift, low-headroom, roof-pitch, and full-vertical applications.
HIGH-PERFORMANCE HARDWARE OPTIONS
Commercial hardware options are available for demanding applications, including heavy-duty components and extended-cycle spring options.
ARCHITECTURAL SERIES – ALUMINUM
INTERESTED IN ARCHITECTURAL SERIES – ALUMINUM?
South Gate Commercial Doors & Accessories can help you select the right Architectural Series – Aluminum model, glazing, frame finish, performance options, and configuration for your commercial project.
